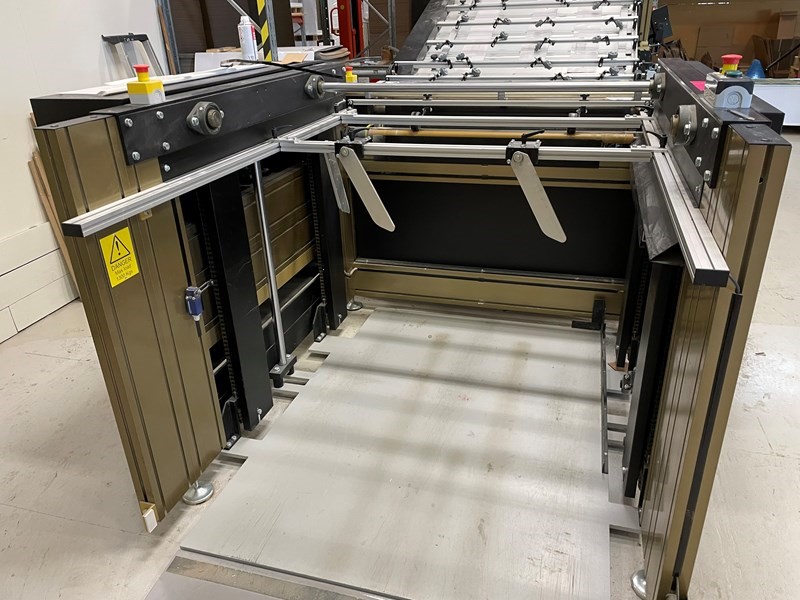

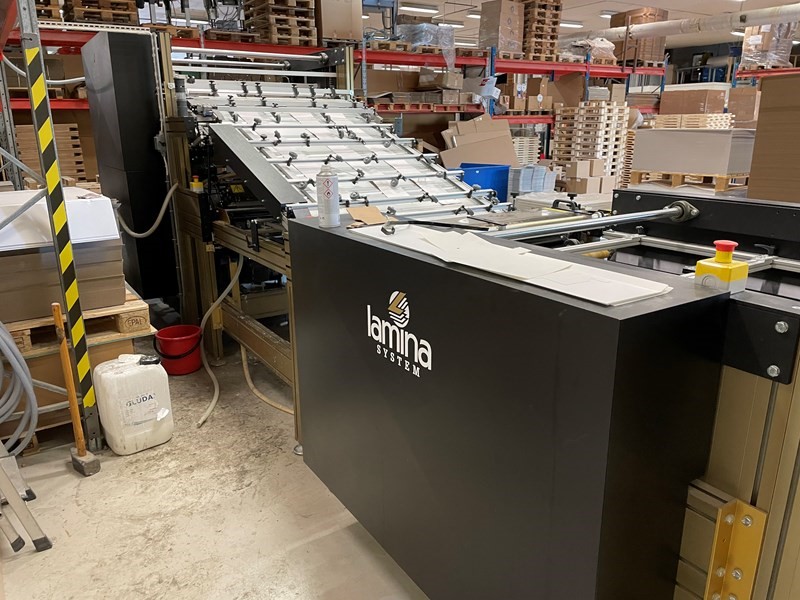

Lamina Blackline Fully Automatic High Speed Sheet to Sheet Laminator

Overview

Discover an exceptional opportunity to enhance your print finishing capabilities with this 2016 Lamina Blackline Fully Automatic High Speed Sheet to Sheet Laminator, Model 1110BL. This robust machine is engineered for precision and productivity, making it an ideal solution for packaging, display, and commercial print operations. As a high-speed litho-laminator, the Lamina Blackline excels at efficiently laminating printed top sheets to a wide variety of substrates. Its fully automatic operation minimizes manual intervention and maximizes throughput, ensuring consistent, high-quality results. This reliable used laminator is available immediately to be integrated into your production line.

The Lamina 1110BL offers significant versatility to handle diverse job requirements. It accommodates a maximum sheet size of 1100 x 1050mm and a minimum sheet size of 350 x 350mm. The top sheet feeder is designed for materials ranging from 130 to 450 gsm. Most impressively, the bottom sheet feeder handles substrates from 250 gsm all the way up to 10mm in thickness, making this machine perfect for laminating onto thick board, corrugated, and other rigid materials. This wide specification range makes it a go-to choice for producing POS displays, rigid boxes, and high-end graphic applications.

This fully automatic laminator is equipped with advanced features for a seamless workflow. It includes both an automatic top sheet rear edge sheet feeder and an automatic substrate rear edge sheet feeder, ensuring precise registration and continuous operation. The integrated glue system provides accurate adhesive application, while the downstream stacker unit neatly compiles the finished product. The entire machine is managed by an intuitive PLC control system for easy setup and monitoring. Don’t miss this chance to acquire a high-performance sheet-to-sheet laminator with immediate availability.

Lamina Blackline Fully Automatic High Speed Sheet to Sheet Laminator

• Type: 1110BL
• Year: 2016
• Max. sheet size: 1100 x 1050mm
• Min. sheet size: 350 x 350mm
• Top sheet: 130 – 450gsm
• Bottom sheet: 250 gsm to 10mm
• Automatic top sheet rear edge sheet feeder
• Automatic substrate rear edge sheet feeder
• Glue system
• Stacker unit
• PLC control system
• Available immediately.
