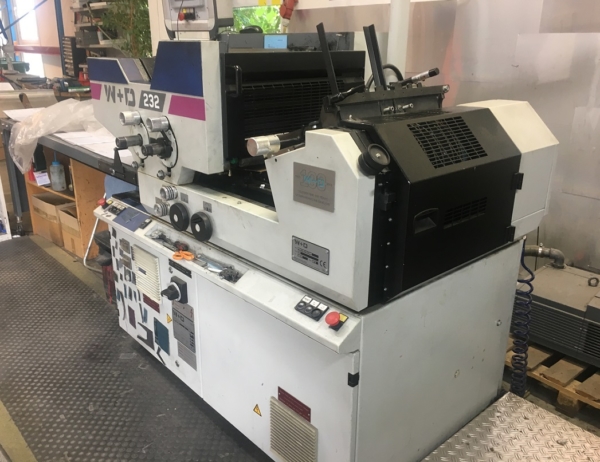

W+D 232 – 2 Colour Offset

Overview

Category: Envelope Printing Machine
Sub Category: 2 Colour Offset
Manufacturer: W+ D
Year: 2012

• Universal Top feeder and aligner section for C7 to C4 envelopes with or without windows,
• Fast setup times,
• Multiple image set up on the plate cylinder,
• Both units are equipped with auto, dynamic speed ink and dampening controls,
• First printing: Max. 255 x 388mmm up to max. 180mm print length bled-off,
• First and second printing: Printed front and back up to edge.
• First printing: max. 180 x 388mm, size height max. 180mm
• Second printing: max. 180 x 388mm, if the first printing area is larger than 1800mm,
• The second printing area reduces.
• Printing plate: Length: 383mm, Width: 415mm, Thickness: 0.2mm
• Self-adhesive rubber blankets are used.
• Impression cylinder: Length: 182.50mm, Width: 406mm, Thickness: 0.95mm
• Rubber blanket cylinder:
• Thickness: 0.95mm
• Max. Speed 1 up operation:42000 eph.
• Max. Speed 2-up operation:72000 eph
• Machine can be seen running.
• Available immediately.
